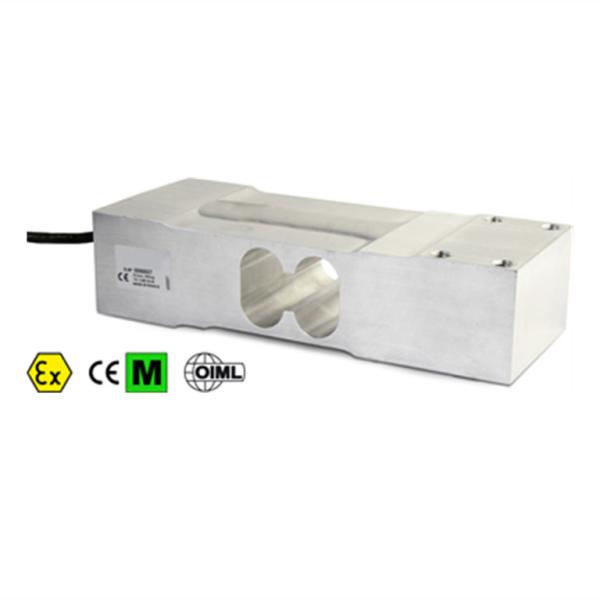

SPBC series single point load cell high precision aluminum alloy
Weighing Load Cells C6 CLASS
Load cells for off center loads, suitable for example to build CE-M
approved scales with a single load cell with maximum dimensions of
700x700 mm.
CAPACITIES (kg): 100, 200, 300, 500, 630.
OIML R60. C3 precision class.
Aluminium alloy. IP65 protection.
MAIN FEATURES
C3 PRECISION CLASS
OFF CENTER LOAD COMPENSATED
MADE IN ALUMINIUM ALLOY
IP65 PROTECTION
MAX. CAPACITIES FROM 100 TO 630kg
FOR PLATFORMS WITH DIMENSIONS UP TO 700 X 700 mm
SHIELDED CONNECTION CABLE
OIML CERTIFICATE AVAILABLE UPON REQUEST
TEST CERTIFICATE AVAILABLE UPON REQUEST
TECHNICAL FEATURES
Minimum load cell verification interval: Vmin = EMax / 10.000Maximum number of verification intervals: nLC = 3000
Full Scale Output: 2mV/V +/- 10%
Combined error: 0,017% of Full Scale Output (F.S.)
Temperature effect on zero: 0,0028% /°C
Temperature effect on full scale output: 0,0014% /°C
Compensated Temperature Range: -10°C/+40°C
Operating Temperature Range: -20°C/+60°C
Creep error after 30 minutes: 0,025% F.S.
Maximum tolerated excitation voltage: 15 VDC
Input Resistance: 410 ± 10 Ohm
Output Resistance: 350 ± 5 Ohm
Zero Balance: +/-10% F.S.
Insulation Resistance: >1000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 200% F.S.
Nominal displacement: < 1mm
SPBC 6-wire shielded cable, 3m long, 5mm diameter
ATEX Version
The CCATEX certificate makes the load cell suitable for use in
hazardous areas with protection methods according to:
ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da
IP65.
The certificate includes the manual and the ATEX CE conformity
declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For
systems with more load cells, it is necessary to order one
certificate for each load cell.
SPBC Wiring Code |
| Colour | Function |
| -- | SHIELD |
| YELLOW | OUTPUT + |
| GREY | SENSE + |
| BROWN | INPUT + |
| WHITE | OUTPUT - |
| GREEN | INPUT - |
| PINK | SENSE - |
Weighing Load Cells Available versions
|
Code | Plate
Max (mm) | Max
(kg) |
| SPBC100  | 700x700 | 100 |
| SPBC200 | 700x700 | 200 |
| SPBC300 | 700x700 | 300 |
| SPBC500 | 700x700 | 500 |
| SPBC630 | 700x700 | 630 |
