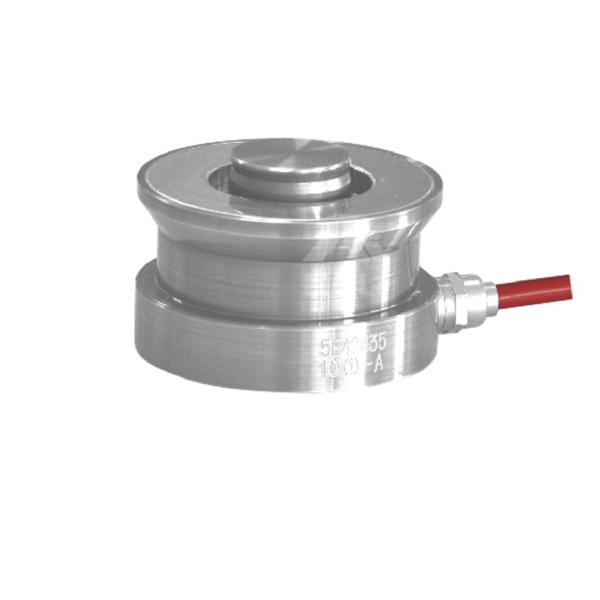

Force Load Cell Hopper weighingscale load cell Column load cell NHSY Series Load Cell NHSY-470t Load Cell

Weighing Load Cells FEATURES:

●capacity 10t to 470t

●force on plane bearing

●low height

●alloy steel, stainless steel

APPLICATION:

●platform scale

●hopper scale

Outline Dimension:
Rated capacity	D	d	H	h	h2
10t,15t,22t	75	30	50	6.5	7
33t	95	40	65	10	7
47t	130	60	75	14	7
68t	130	60	85	14	7
100t	150	70	90	16	7
150t	150	70	100	16	7
220t	225	100	130	24	10
330t	225	100	145	24	10
470t	270	120	170	28	10

SPECIFICATION:
Rated capacity: 10ton to 470ton	Operating temperature range: -30 to +70℃
Rated output:2.85±0.015mv/v	Maximum safe overload；150% OF R.C
Combined error:±0.05% F.S,±0.1% F.S,±0.2% F.S	Ultimate safe overload；180% OF R.C
Non-repeatability:±0.02% F.S	Recommended Excitation；10 to 12V DC
Non-linearity:±0.05% F.S,±0.1% F.S	Maximum Excitation；15V DC
Hysteresis error:±0.05% F.S,±0.1% F.S	Environment protection: IP67
Zero balance: ±1% F.S	Input impedance: 1450±10Ω
Creep error(30minutes): ±0.02% F.S	Output impedance: 1402±5Ω
Temperature effect on zero: ±0.02% F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S	Material: nickel-plated alloy steel
Compensated temperature range: -10 to +40℃	Cable length: 12meter(10t~33t), 16meter(47t~470t),diameter 6mm

Hopper weighingscale load cell FEATURES:

●capacity 1t to 4.7t

●alloy steel, stainless steel

●force on small plane bearing

●low height

Column load cell APPLICATION:

●hopper scale

●platform scale

Outline Dimension:
Rated capacity	D1	D2	d	K	H	D3	D4
1t~4.7t	Φ50	Φ60	Φ20	7.5	43	53	M5

NHS Series Load Cell SPECIFICATION:

Rated capacity: 1ton to 4.7ton	Operating temperature range: -30 to +70℃
Rated output:2.85±0.015mv/v	Maximum safe overload；150% OF R.C
Combined error:±0.1% F.S	Ultimate safe overload；180% OF R.C
Non-repeatability:±0.02% F.S	Recommended Excitation；10 to 12V DC
Non-linearity:±0.1% F.S	Maximum Excitation；15V DC
Hysteresis error:±0.1% F.S	Environment protection: IP67
Zero balance: ±1% F.S	Input impedance: 1450±10Ω
Creep error(30minutes): ±0.03% F.S	Output impedance: 1402±5Ω
Temperature effect on zero: ±0.02% F.S	Insulation resistance at 50V DC: ≥5000MΩ
Temperature effect on output: ±0.02% F.S	Material: nickel-plated alloy steel
Compensated temperature range: -10 to +40℃	Cable length: 8meter, diameter 6mm

We specialize in the development of industrial scales. CONHON has mature weighing design and production experience, and has professional weighing and research personnel to provide high-quality non-standard weighing equipment design services and comprehensive weighing control system solutions. Make your company's weighing application double the number of performances on the basis of lower operating costs, increase production efficiency, and maximize profits. Welcome to start your relaxing and enjoyable app journey!
